Struggling with weak flames or clogged burners in your kitchen? Our professional commercial wok range delivers intense conical flame up to 150,000 BTU, engineered with anti-clogging jet burners and continuous pilot light for instant, reliable ignition — built to withstand 16-hour daily operation in busy restaurants.

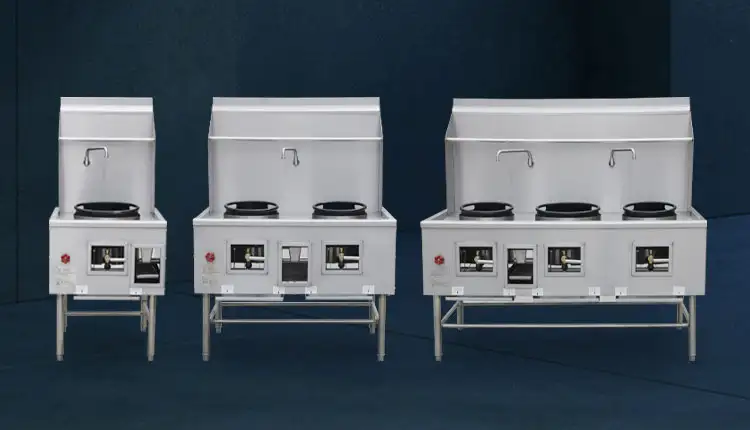

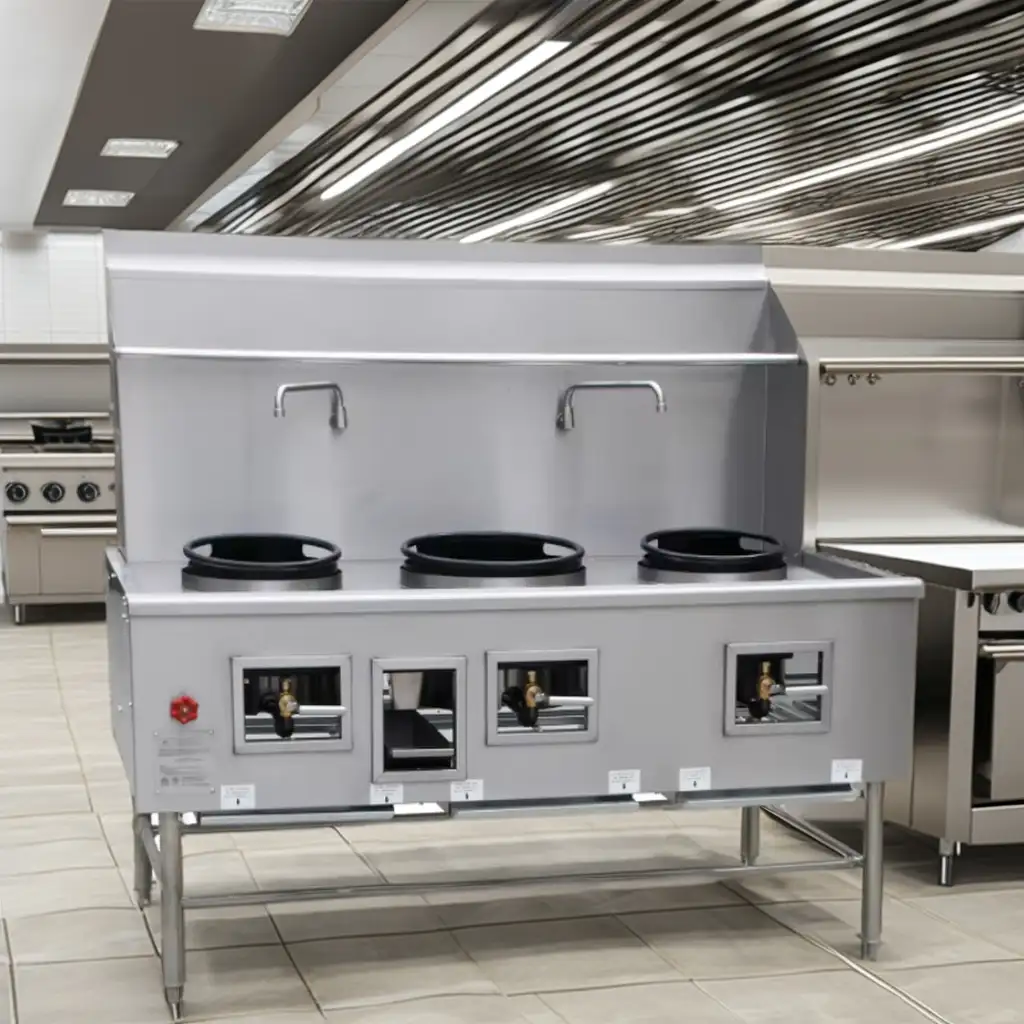

Chinese Professional Stainless Steel Wok Burner – Commercial Wok Range

Mandarin wok range. Featuring anti-clogging jet burner, offers an intense coneshaped flame to reach hot temperature and a continuous pilot light for easy, instant ignition. Boasting a durable stainless steel construction with welded and polished seams.

Key Features

• Anti-clogging jet burner with intense cone-shaped flame for high-temperature cooking
• Continuous pilot ignition system for instant, reliable lighting
• Durable stainless steel construction: front, sides, top, landing ledge, high backsplash, and pipe rack — all welded & polished seams
• Water-cooled top with built-in drain system to control surface temperature

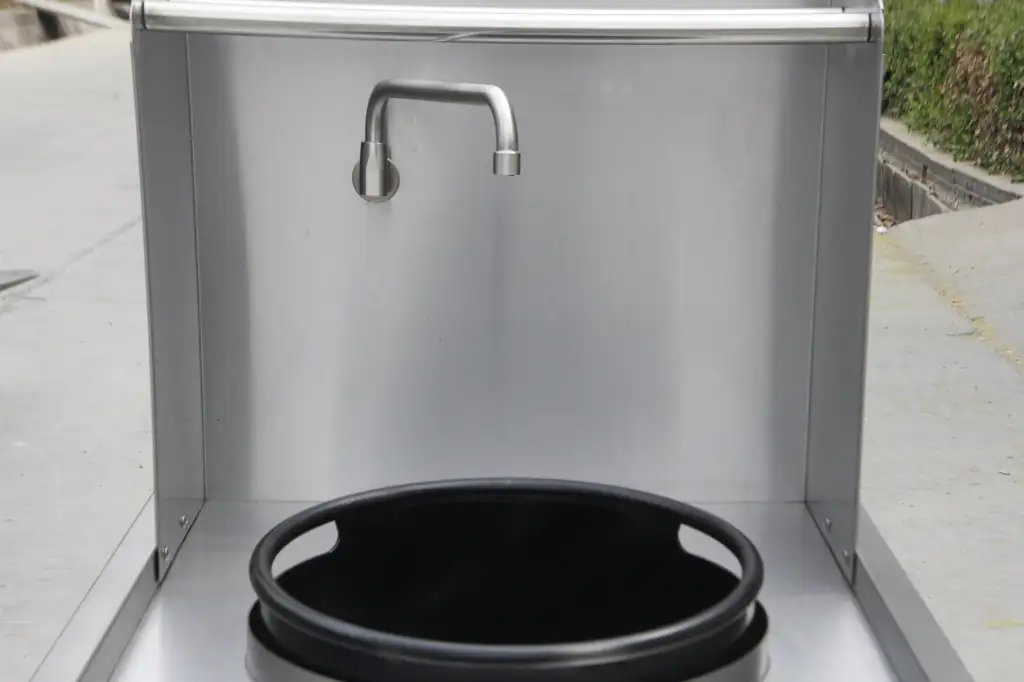

• Manually-controlled Chinese swing faucet positioned between burner holes to avoid heat exposure

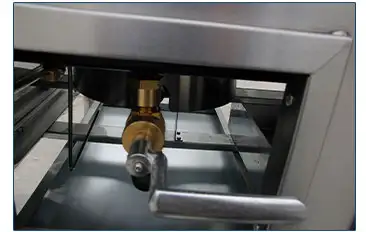

• Knee-level “L”-shaped adjustable gas valve keeps hands free during cooking


  Technical Specifications

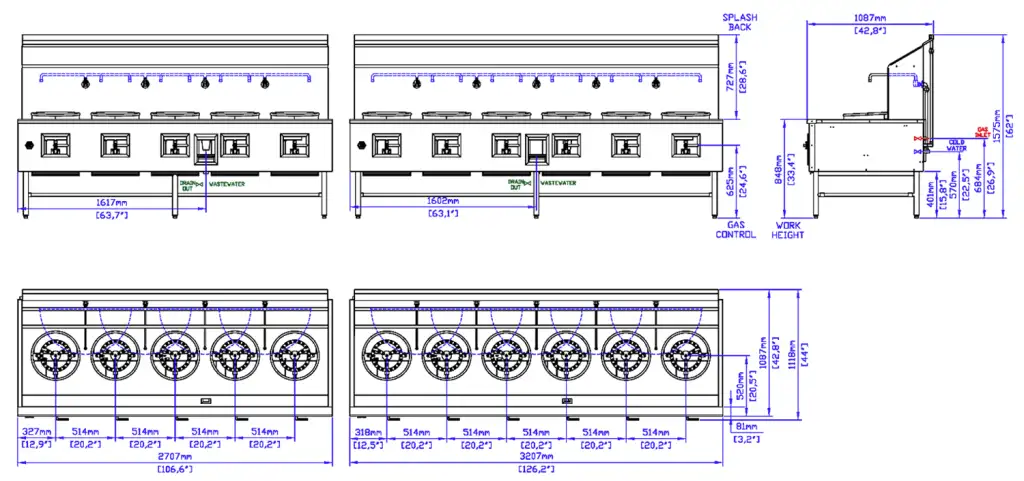

  Model	Gas Type	Burners	Pot Sizes (in)	Total BTU	kW	Dimensions (W×D×H)
  CP-W1L0	Natural Gas / LPG	1	13"	95,000	27.8	27.8" × 44" × 62" (70.7×111.8×157.5 cm)
  CP-W1L1	Natural Gas / LPG	1	16"	125,000	36.6	27.8" × 44" × 62"
  CP-W2L0	Natural Gas / LPG	2	13"+13"	190,000	55.7	47.5" × 44" × 62" (120.6×111.8×157.5 cm)
  CP-W2L1	Natural Gas / LPG	2	13"+16"	220,000	64.5	47.5" × 44" × 62"
  CP-W2L2	Natural Gas / LPG	2	16"+16"	250,000	73.2	47.5" × 44" × 62"
  CP-W3L0	Natural Gas / LPG	3	13"+13"+13"	285,000	83.5	67.2" × 44" × 62" (170.6×111.8×157.5 cm)
  CP-W3L1	Natural Gas / LPG	3	13"+16"+13"	315,000	92.3	67.2" × 44" × 62"
  CP-W3L2	Natural Gas / LPG	3	16"+13"+16"	345,000	101.1	67.2" × 44" × 62"
  CP-W3L3	Natural Gas / LPG	3	16"+16"+16"	375,000	109.9	67.2" × 44" × 62"
  CP-W4L0	Natural Gas / LPG	4	13"×4	380,000	111.3	86.9" × 44" × 62" (220.7×111.8×157.5 cm)
  CP-W4L1	Natural Gas / LPG	4	13"+16"+13"+13"	410,000	120.1	86.9" × 44" × 62"
  CP-W4L2	Natural Gas / LPG	4	13"+16"+16"+13"	440,000	128.9	86.9" × 44" × 62"
  CP-W4L3	Natural Gas / LPG	4	16"×3 +13"	470,000	137.7	86.9" × 44" × 62"
  CP-W4L4	Natural Gas / LPG	4	16"×4	500,000	146.5	86.9" × 44" × 62"
  CP-W5L0	Natural Gas / LPG	5	13"×5	475,000	139.0	106.6" × 44" × 62" (270.7×111.8×157.5 cm)
  CP-W5L1	Natural Gas / LPG	5	13"×4 +16"	505,000	147.8	106.6" × 44" × 62"
  CP-W5L2	Natural Gas / LPG	5	13"+16"+13"+16"+13"	535,000	156.6	106.6" × 44" × 62"
  CP-W5L3	Natural Gas / LPG	5	16"+13"+16"+13"+16"	565,000	165.4	106.6" × 44" × 62"
  CP-W5L4	Natural Gas / LPG	5	16"×4 +13"	595,000	174.2	106.6" × 44" × 62"
  CP-W5L5	Natural Gas / LPG	5	16"×5	625,000	183.0	106.6" × 44" × 62"
  CP-W6L0	Natural Gas / LPG	6	13"×6	570,000	166.8	126.2" × 44" × 62" (320.7×111.8×157.5 cm)
  CP-W6L1	Natural Gas / LPG	6	13"×5 +16"	600,000	175.6	126.2" × 44" × 62"
  CP-W6L2	Natural Gas / LPG	6	13"×4 +16"×2	630,000	184.4	126.2" × 44" × 62"
  CP-W6L3	Natural Gas / LPG	6	16"+13"+16"+13"+13"+16"	660,000	193.2	126.2" × 44" × 62"
  CP-W6L4	Natural Gas / LPG	6	13"+16"×4+13"	690,000	202.0	126.2" × 44" × 62"
  CP-W6L5	Natural Gas / LPG	6	16"×5 +13"	720,000	210.8	126.2" × 44" × 62"
  CP-W6L6	Natural Gas / LPG	6	16"×6	750,000	219.6	126.2" × 44" × 62"

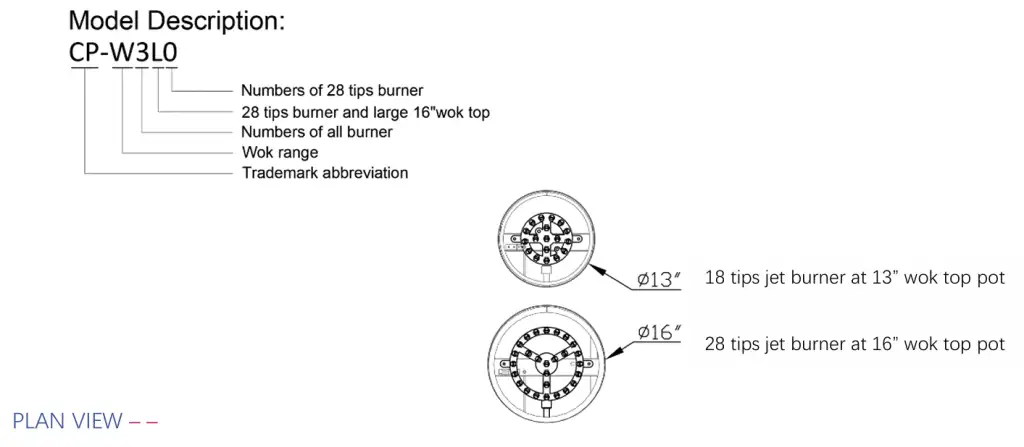

  Burner Details

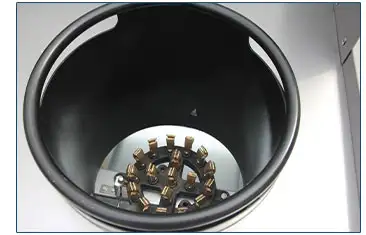

• 13" wok: 18-tip anti-clogging jet burner, 95,000 BTU (27.8 kW)
• 16" wok: 28-tip anti-clogging jet burner, 125,000 BTU (36.6 kW)

Installation Requirements

• Commercial use only – not for residential installation
• Gas inlet: ¾" NPT rear connection
  • Natural Gas: operating pressure 5.0" W.C., supply 7–9" W.C.
  • Propane: operating pressure 10.0" W.C., supply 11–12" W.C.
  • Max supply pressure: 14" W.C. (0.5 PSI)
• W4/W5/W6 models: two gas inlets
• Mandatory: install supplied gas pressure regulator

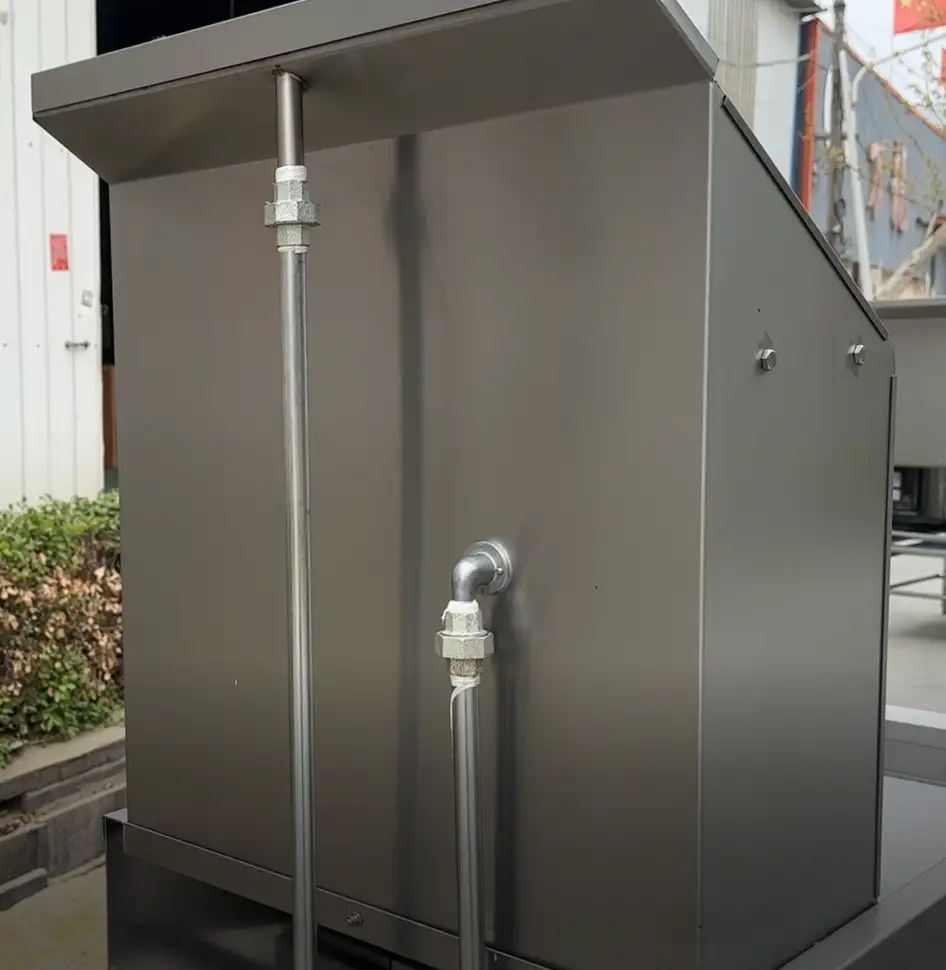

• Water connections: ½" NPT female (inlet & drain)
• Clearance: 6" required on both sides and rear near combustible materials
• Ventilation: adequate commercial kitchen hood system required


Why Choose Us?

• Pre-production sample + final inspection before shipment
• Product range: restaurant, catering, kitchen, buffet & cooking equipment

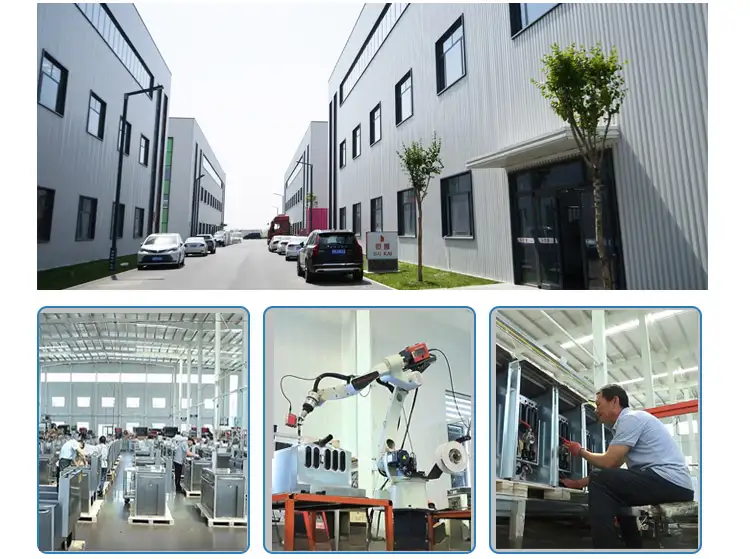

• Experienced manufacturer: 10 engineers, 30×40'HQ containers/month capacity
